Description of Techkon Dens

• Techkon Dens brings together 3 instruments in one.
  You get a reflection densitometer for CMYK printing, a film transmission densitometer and a magnification instrument for visual inspection of your print.

  This cost effective entry-level instrument allows everyone to perform a fundamental densitometric quality control on the basis of the reliable high accuracy well-known from all TECHKON instruments.

  The DENS indicates densities, dot area and gray balance clearly legible on a large color display. Automatic color and gray balance detection speeds up the measuring. In addition the device is easily operated by only three buttons. The whole measurement is provided in a split of a second.

  LED technology, durable and energy-saving, is used as light source. A multi-channel color sensor evaluates the measuring signal guaranteeing inter-instrument agreement with high-class spectrophotometers.

  The integrated Li-Ion battery can be recharged very fast via the USB cable on any USB port and delivers energy for a few thousand measurements.
  To meet the demands of a printing rooms harsh environment, the compact casing of the DENS is made of solid aluminum and is therefore very robust. Despite its solidity, the DENS nevertheless weights only 330 g and thanks to its ergonomic and elegant design it is more than a user-friendly and precise measurement tool - it is an eye-catcher.



  The highlights at a glance


  - Three measuring devices in one
  - Intuitive operation

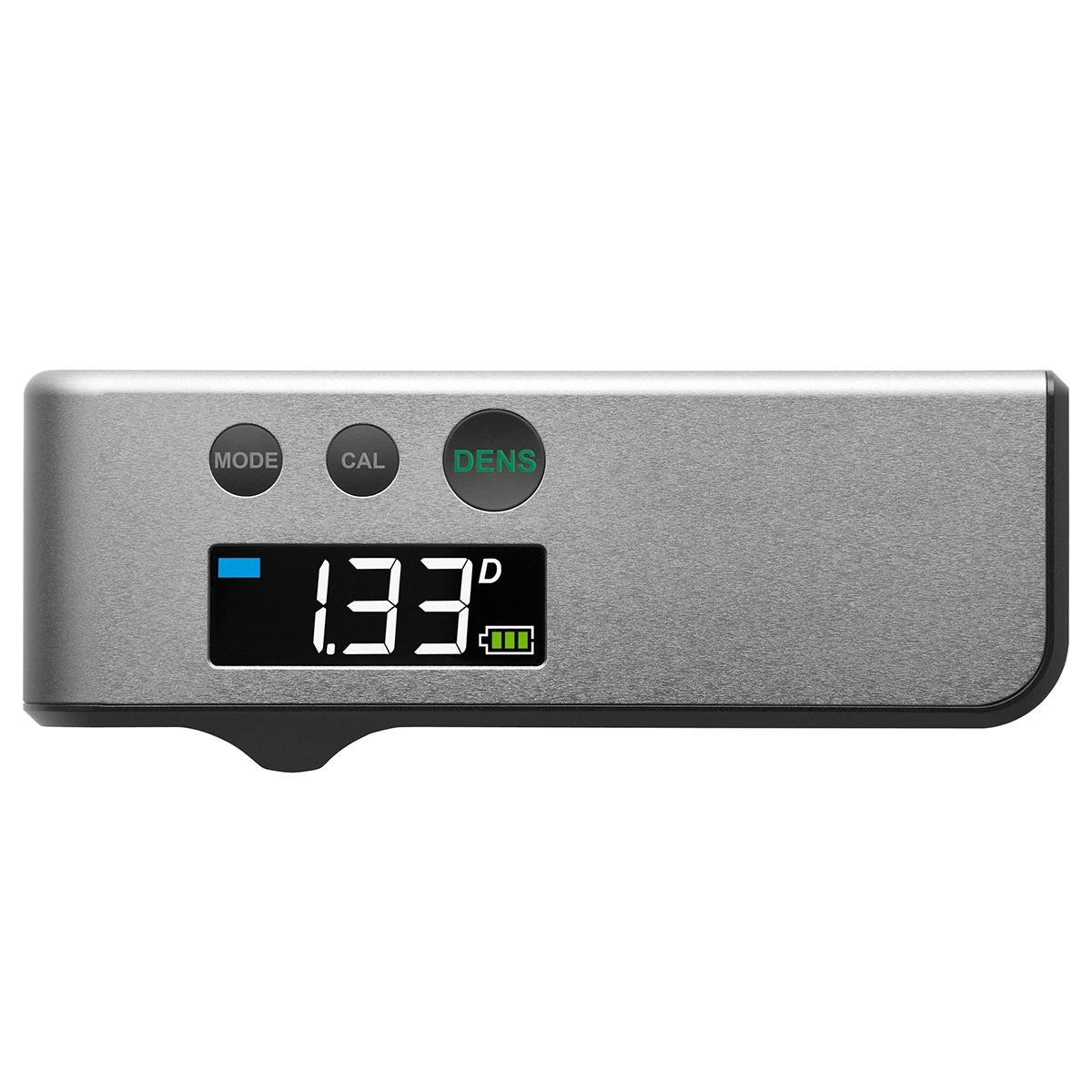

  - Large, backlit LC color display
  - Measurement time of less than one second
  - LED technology
  - High quality multi-channel color sensor
  - Solid aluminum case
  - Precision magnification, 4x magnification, on



  Product video




• Specifications


  - Measurement geometry: 45° : 0° optics

  - Measuring opening: 2.5 mm

  - Light source: LED

  - Polarization filter: Twice linear crossed (ISO E); optional without polarizing filter (ISO T)

  - Measurement time: 0.5 seconds per measurement

  - White reference: relative (ISO E) or absolute (ISO T)

  - Density filter: ISO E (with polarization filter); optional ISO T (without polarization filter)

  - Density measurement: 0.00 – 2.50 D in reflection, 0.00 – 4.00 D range in transmission

  - Repeatability: 0.01 D

  - Inter-instrument: agreement 0.01 D

  - Display: Backlight color display

  - Magnifying glass: 4 x magnification, switched on

  - Power supply: Rechargeable Li-Ion battery, regulated recharge via USB cable, up to 10,000 measurements per battery charging, checking battery level

  - Weight: 330 grams

  - Dimensions: 32 x 68 x 175 mm (approx. 1.3 x 2.7 x 6.9 inches)
