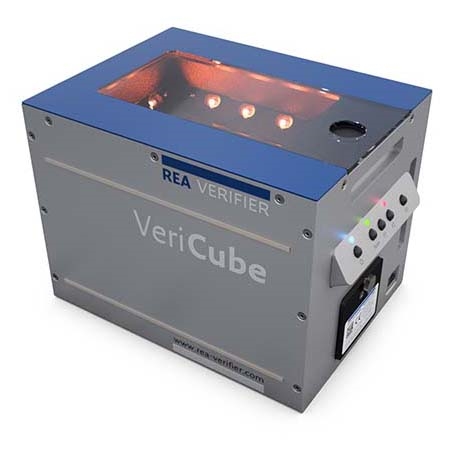

Description of REA VeriCube UV 365nm - without camera module

• The REA VeriCube UV (ultraviolet) is a state-of-the-art matrix and barcode verification device that can be used across all industry sectors. Regardless of whether you are lying, standing or from top to bottom, virtually any test sample can be measured non-contact optimal measuring position.

  Measurement of optical codes in accordance with defined angles, distances and illumination allows accurate and reproducible measurement results and quality evaluations.

  The measurement system is based on a high-precision optical module with a CMOS camera chip. The system is designed to avoid the influence of ambient light during the measurement process.

  The measured values are transferred via a standard network interface to a PC with the REA TransWin32 evaluation software installed.
  The verification system consists of the measuring head, an optical module with a wide measuring range to choose from and the Windows-based PC evaluation software REA TransWin32.

  With the REA Verifier VeriCube, you can quickly find out how to improve the reading speed of the tested codes.
  Optimize the print quality of your codes using detailed measurement results.



  Features


  - Ultraviolet lighting
  - Contactless measurements with a CMOS camera
  - Easy interchangeable camera modules to adapt to different code sizes and measuring distances
  - Selectable illumination (red or ultraviolet)
  - Designed to operate in 3 positions to meet different measurement requirements: sideways, upright and upside down
  - Darkened measuring chamber to avoid ambient light effects
  - Verification according to ISO/IEC 15415 for printed matrix codes
  - Verification according to ISO/IEC TR 29158 (formerly AIM DPM guideline 2006) for direct part marking matrix codes
  - Verification in accordance with the GS1 specifications
  - Verification of GS1 128 data structures
  - Verification of optional parameters for optimizing the printing process
  - Multilingual user interface and reports
  - For ease of use, settings can be saved in custom profiles for quick selection
  - ISO/IEC 15418 / ANS MH10.8.2 data structure analysis
  - Specific code selection to meet the pharmaceutical industry's requirements
  - Power supply via network cable (Power over Ethernet)
  - Easily removable and replaceable transparent cover plate
  - Network compatible PC evaluation software TransWin32 for Windows (multi-user compatible)



  Technical Data


  - Measuring accuracy compliant to ISO/IEC 15426-2 and ISO/IEC 15426-1
  - Windows Software TransWin32 included
  - Ultraviolet light 850 nm or Red LED light 660 nm
  - alternative Infrared 940 nm or Red light 940 nm
  - Illumination angle 45°, red or ultraviolet
  - Status LEDs for scan and light source selection
  - Power supply via PoE (Power over Ethernet)
  - Key panel with on/off, Scan and 3 customizable function keys
  - Flip key panel to accommodate to preferred measuring position
  - RJ45 Ethernet port for TCP/IP communication and PoE Power supply
  - Exchangeable camera module, resolution 2592 x 1944 pixels
  - Camera focus and aperture pre-adjusted by factory
  - Size: 200 x 150 x 150 mm (w/l/h), with key panel 210 mm width
  - Weight: 2,600 g
  - Windows 7, 8 and 10, 64 bit support
• Features:

  - Ultraviolet illumination
  - Contactless measurements with a CMOS camera
  - Easy to replace camera modules to adapt to different code sizes and measurement distances
  - Selectable lighting (red or ultraviolet)
  - Designed to operate in 3 positions to meet different measurement requirements: sideways, upright, and upside down
  - Dark measurement chamber to avoid ambient light interference
  - Verification according to ISO/IEC 15415 for printed matrix codes
  - Verification according to ISO/IEC TR 29158 (formerly AIM DPM guideline 2006) for direct part marking matrix codes
  - Verification in accordance with GS1 specifications
  - Verification of GS1 128 data structures
  - Verification of optional parameters for print process optimization
  - Multilingual user interface and reports
  - Settings can be saved in custom profiles for quick selection
  - ISO/IEC 15418 / ANS MH10.8.2 data structure analysis
  - Specific code selection to meet pharmaceutical industry requirements
  - Power supply via network cable (Power over Ethernet)
  - Easily removable and replaceable transparent cover plate
  - Network-compatible PC evaluation software TransWin32 for Windows (multi-user compatible)
