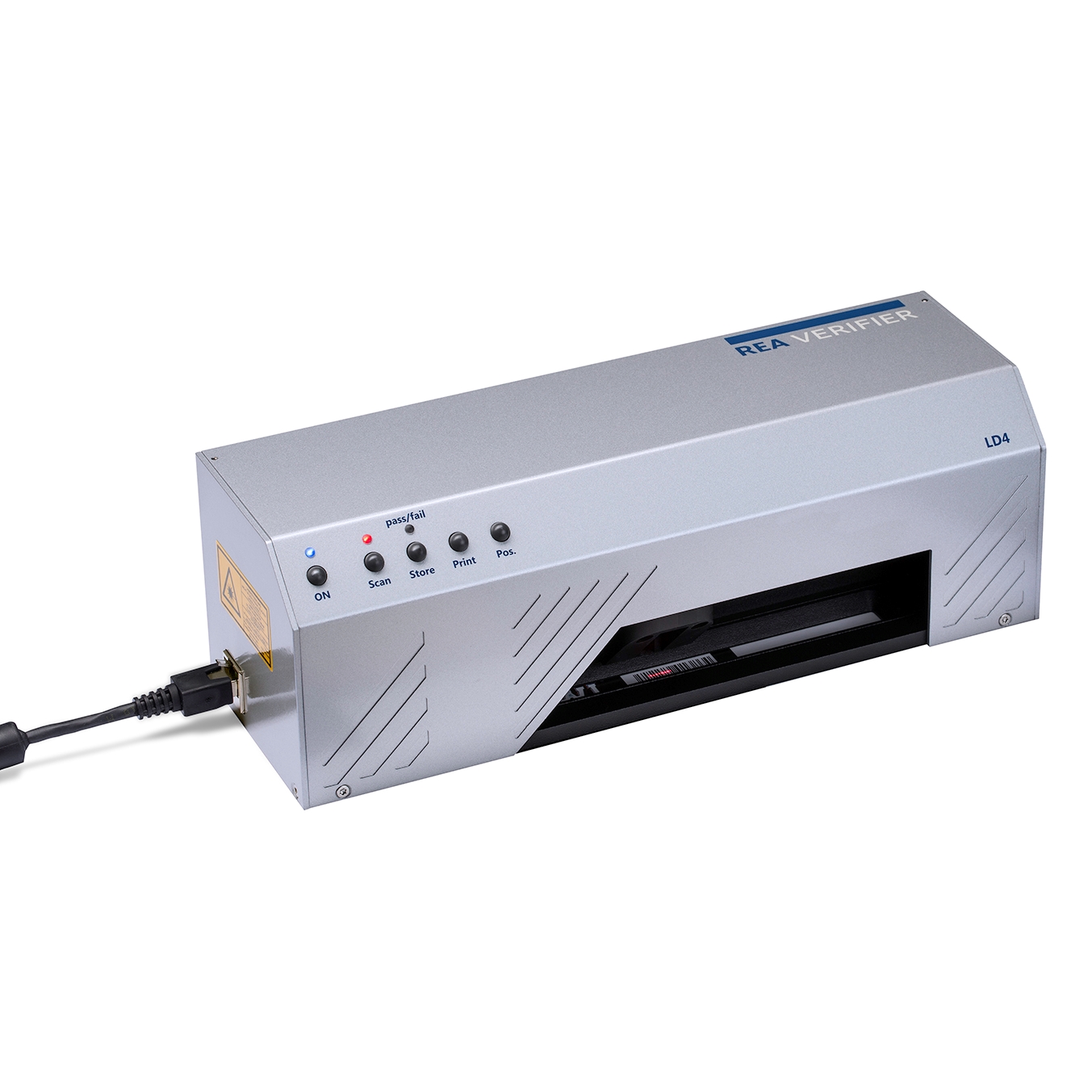

Description of REA PC Scan LD4 - 133 mm barcode size / reading area.

• REA PC Scan LD 4 is the only barcode verifier that works with absolute numerical values for reading and is most often used as a reference instrument. REA PC Scan handles barcodes up to 133 mm but also comes in a size of 220 mm and is perfect for helping to analyze the quality and dimensional variations of the printer or printing machine. Here it is a great tool for analyzing where and possibly what the error is.

  REA PC Scan uses REA's Transwin software for presentation. Transwin provides an easy-to-understand graphical presentation that explains deviations simply and accurately with 1/1000 mm precision. REA PC Scan also handles the GS1 data structure of the codes, which ensures against errors in the construction of the barcodes. It is the only barcode verifier that is self-calibrating. REA PC Scan has a built-in white ceramic plate to calibrate its light, and its length and size are automatically adjusted based on the rail that the head moves on and does not need to be calibrated.

  REA PC Scan can also measure surface texture and provide a graphical presentation of the surface. This is especially useful when dealing with barcode quality issues on products with large textures such as egg cartons.

  Note: Aperture is normally from 4 mm and up to 8 mm here. It is also available in a 10 - 20 mm solution, which must be decided upon purchase.

  We service all REA barcode verifiers, and for our customers with a service contract, we provide free phone support and service, as well as update and validate the barcode scanners once a year. Feel free to inquire about a service agreement, as we offer it for all our instruments and provide customized solutions, as well as offering courses on quality assurance and solution development.
• Version
  Scanner reads head 4 - 8 mill aperture.
  This resolution is used for all code types from small to medium-sized barcodes, typically up to about 10 cm.

  Scanner reads head 10 - 20 mill aperture.
  This resolution is used for all large codes where the beam width is over 0.5 mm (Z module width).
  Carton printing and shipping labels such as SSG codes, codes used for long distance reading, rough reader engraved codes.
  If you are unsure, you can email us your question at info@grafisk-handel.dk

  Compatible with
  REA PC-Scan/LD4 - 220 mm barcode size/read field.
