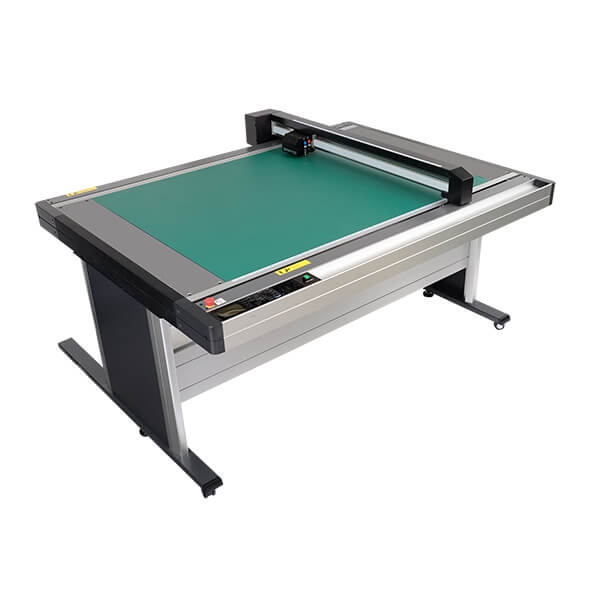

Description of Graphtec Graphtec FCX2000-120ES E electros type 1200x920mm

• Graphtec FXC2000 Series Electrostatic Flatbed Cutting Plotter
  The Graphtec FCX2000 is the ultimate solution for prototyping and small production runs of rigid materials without the use of a cutting die.
  Reduce media waste/ processing time with Graphtec's precision cutting and dedicated software.
  Added offline (USB) operation enables users of all skill levels to easily process materials.

  Technical Specifications
  Media hold-down method: Electrostatic
  Effective cutting area: 1,200mm x 920mm
  Mountable media (Y-axis): 950mm
  Roll media support: Roll media stocker (manual feeding), supported media; width: up to 950 mm, weight: up to 5 kg
  Maximum cutting speed: 400 mm/s (1 to 40 cm/s in 16 steps), in all directions
  Cutting force: Tool 1: Max. 4.9 N (500 gf), Tool 2: Max. 9.8 N (1 kgf)
  Cutting force settings: Tool 1: in 40 steps, Tool 2: in 40 steps
  Minimum character size: Approx. 10 mm square (varies with character font and media)
  Programmable resolution: GP-GL mode: 0.1/0.05/0.025/0.01 mm, HP-GLTM : 0.025 mm
  Distance accuracy: Max. 0.1% of the distance moved or 0.1 mm, whichever is larger (in plotting mode) (*2)
  Perpendicularity: Max 0.5 mm / 900 mm (in plotting mode)
  Repeatability: Max 0.1 mm (excluding contraction of media, in plotting/cutting mode) (*2)
  Standard interfaces: RS-232C, USB2.0 (High-Speed), and Ethernet (10BASE-T/100BASE-TX)
  Buffer memory: 2MB
  Command sets: GP-GL and HP-GLTM emulation (set by menu, or selects automatically by received data)
  Number of tools: Two tools
  Cutting blade, pen, and tool types: Cutting blade (supersteel), Pens (Water-based fiber-tip pen, oil-based ballpoint pen), and Creasing/scoring tool
  Others: ARMS, Reverse side Cutting/Creasing using ARMS, ARMS Copy function, Creasing, Cutting/creasing in multiple passes
  Power source: 100 to 240 VAC, 50/60 Hz (Auto switching)
  Power consumption: Max. 140 VA
  Operating environment: Temperature: +10 to +35 ºC, Humidity: 35 to 75% RH (non-condensing)
  Guaranteed accuracy environment: Temperature: +16 to +32 ºC, Humidity: 35% to 70% RH (non-condensing)
  External dimensions [W x D x H] (Approx.): 1934 x 1409 x 930 mm (Including stand)
  Weight (Approx.): 93 kg (Including stand)
  Compatible OS (*4): Windows 10 / 8.1 / 8 / 7, Mac OS X 10.7 to 10.11 / macOS 10.12
  Supported software (*4) (*5): Cutting Master 4, Graphtec Pro Studio, Graphtec Studio(for Mac)
  Compatible Standards: Safety - UL60950-1/cUL, CE marking (Low voltage and EMC)
  Compatible Standards: EMC - FCC-A, EN55032-A
