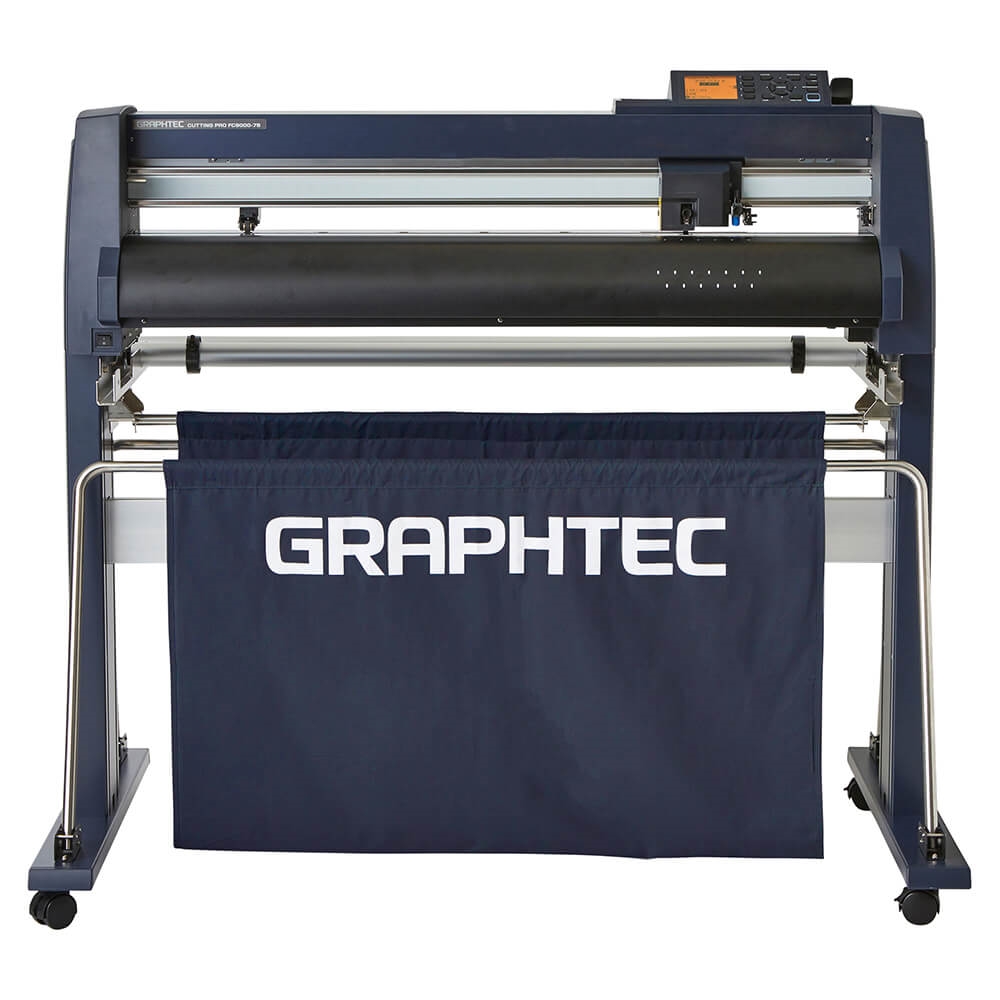

Graphtec FC9000-75 E with stand 36", Grit cutting plotter

Varenr.: 92813 - Lev. nr.: FC9000-75 E
Graphtec

Retail Price 5.055,00 €

Price per. pcs when buying 1 5.055,00 €
ex. VAT and environmental contribution fee

Expected delivery time: 14 work day(s)

Quantity

Shop with confidence

Fast shipping or Economy shipping from Denmark
100% Free Support
Secure shopping
Our customers give us 4+ reviews

Description
Brochures & Datasheets
Shipping
Delivery Time

Description of Graphtec FC9000-75 E with stand 36", Grit cutting plotter

Graphtec Cutting Pro FC9000 Series Cutting Plotter
The Graphtec FC9000 Series Cutting Plotter provides higher levels of productivity and greater ease of use than any other cutting plotter on the market.
The FC9000 comes as standard with media catch nets, networking capabilities, built-in cross-cutter, stand and is available in 4 different widths to perfectly fit into your work space and media requirements.
Class Leading Performance | Increased High Level Productivity | Premium Design Software

Key Specifications:
Configuration: Grit Roller With Digital Servo Drive System
Built-In Cross Cutter
Networking Port
Media Catch Baskets
Media Tracking Distance: 15m (Extended To 20m If Automatic Take Up Roller Installed on 140 & 160 Versions)
Maximum Cutting Force: 5.88N (600gf)
Minimum Character Size: Approx. 3mm Alphanumeric (Varies Depending On Character Font & Type Of Media)
Programmable Resolution: GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GLTM: 0.025 mm
Repeat-ability: Max. 0.1 mm In Plot up to 2m
Mountable Number Of Tools: 2 Tool (When Second Pen Kit Installed)
Blade Type: Supersteel
Pen Type: Oil-Based Ballpoint | Water-Based Fibre-Tip
Media Type: Self-Adhesive Marking Film Up To 0.25mm Thick Or Less (PVCFilm | Fluorescent | Reflective), Polyester Film (On Condition), High Intensity Reflective Film (Diamond Grade | Engineer Grade)
Perforation Cutting: Yes (Performed By Force Control)
Interface: RS-232C | USB 2.0
Buffer Memory: 2MB
What's Included:
Plotter Including Matching Stand & Media Stocker
Cutting Blade Holder: PHP33-CB09N-HS
Cutting Blade: CB09UB
Loupe: PM-CT-001 For Checking Blade Length & Condition
Fibre-Tipped Pen Holder: PHP31-FIBER
Water-Based Fibre Tipped Pen: KF700-BK
USB Cable : 2.9m Long
DVD-ROM
Manual
Machine Widths:
75 = 762mm (30″)
100 = 1067mm (42″)
140 = 1372mm (55″)
160 = 1626mm (64″)
FC9000 Included Software:
Graphtec Pro Studio (For Windows)
Graphtec Studio (For MAC)
Cutting Master 4 (For Adobe Illustrator & CorelDRAW Integration)
Optional Extras:
2nd Pen Kit
Extra Push Roller Assembly
Flange Kit For Enhanced Media Tracking
Automatic Take Up Spool For 140cm & 160cm Version
