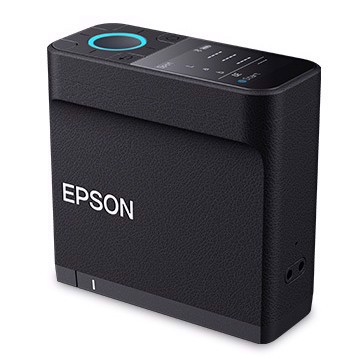

Description of Epson SD-10 Spectrophotometer

• Epson The SD-10 is a small revolution in color measurement. It is perhaps the best color control instrument for the price.
  We have tested it against X-Rite eXact, X-Rite i1 Pro and Techkons photospectrometers and the difference is less than 0.21 DeltaE, which is nothing when we are talking about instruments for 5-10 times the price.
  The only small minus for some printers is the fixed aperture of 7.6 mm.
  In our eyes, this instrument is a "must have" for anyone working with color.

  You can see color on a whole new level with the fully featured, portable Epson SD-10 spectrophotometer, which combines accuracy and speed to give you the color information you need to make important color decisions.
  This easy-to-use device is the first spectrophotometer developed af Epson and measures colors accurately, consistently and quickly.
  Dens compact size makes it easy to carry, and dens built-in battery allows you to take measurements virtually anywhere, anytime. With Bluetooth wireless connectivity, Epson Spectrometer mobile app and af workflow integration, the SD-10 can help you improve your color control.



  Features


  - Fully featured spectrophotometer - Meets industry standard measurement capabilities: M0, M1e and M2 modes.
  - User-friendly, portable design - Compact size makes it easy to carry; battery power allows you to perform measurements from virtual.

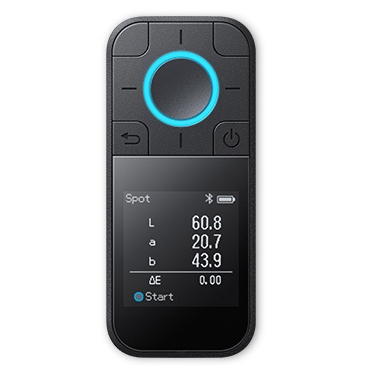

  - Standalone operation - Built-in LCD display allows you to quickly view color measurements.
  - Bluetooth wireless connectivity - Connect to a mobile device or computer using af Bluetooth.
  - Epson Spectrometer mobile app - Versatile mobile app allows for streamlined collaboration and improved workflow.
  Large Aperture for textured surfaces - 7.6mmaperture measures up to 1.5 times the area covered by af similar products, allowing for greater accuracy.
  - Integration with Epson Edge Print-software - Measure colors directly in the print workflow; Connect via Bluetooth or USB
  - Build color libraries - Use the mobile app to create color palettes, find similar PANTONE colors, and record measurements
  - Color confidence - Use the mobile app to identify if your Epson-printer, media, and ICC profile can reproduce a measured color



  Specifications


  Spectral Range 400 nm-700 nm
  Photometric Range 10 nm (interpolated by software)
  Light Source LED (includes UV)
  Measurement Modes Spot, Comparison (Spot),
  Comparison (Scan)
  Measurement Conditions
  M0: UV included (ISO 13655:2017)
  M1e: D50 (equivalent to 13655:2017)
  M2: UV excluded (ISO 13655:2017)
  Measurement Aperture 7.6 mm
  Measurement Geometry 45 ̊ circumferential/normal geometry
  (45 ̊ c: 0 ̊)
  Illuminant D50, D65, A, F1, F2, F3, F7, F8, F9, F10, F11, F12
  Observer Angle 2 ̊, 10 ̊
  Delta E Methods ∆E 2000, ∆E 1994 Graphic Arts, ∆E 1994, ∆E 1976
  Memory 100 colors (Spot Mode)
  Interinstrument Agreement
  ∆E 2000 Average: 0.4 or less
  ∆E 2000 Maximum: 1.0 or less
  Deviation from SD-10 Manufacturing Standard for 12 BCRA Color
  Tiles: D50, 2 ̊
  Short-Term Repeatability
  ∆E 1994: 0.1
  Average of 10 Measurements Every 3 Seconds on White Tile:
  D50, 2 ̊

• Product video







  Who can use Epson SD-10


  - Print shops, both digital and conventional.
  - Anyone who has a large format printer from Epson, Canon or HP
  - Anyone who works with Pantone colors
  - Anyone who wants color control
  - Sign printers
  - Owners af Epson SureColor solvent printers
  - Advertising agencies
